"Model", one word and many meanings

When working with Pyramid Analytics we often mean different things when we refer to “Model” or “Data Model”.

In this post I will clarify the main distinctions between the different model terms.

In essence, there are four elements we could be referring to when using the term “Model”:

• Model definitions

• Data Model definitions

• Materialized Data Model

• ML (Machine Learning) Models

ML models are more elaborate in their makeup   so I will not go into them in this  post. If you have a conversation that includes ML, remember – they are also models   and need distinction.

So, lets make Model definitions clearer:

1. Model Definitions

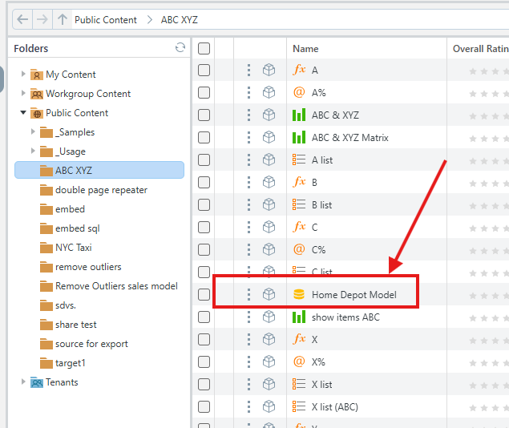

Model Definitions are the items in the Content Management System (represented by the yellow model icons) that are created when we “save” a model:



While we might refer to it as a “Model”, it is more accurate to describe it as a Process Automation Directives File.

Model Definitions can store a multitude of actions:  Execute data flows, make API calls, execute command lines, send messages, execute scripts and many other tasks, even running loop sequences.

The main usage of Model Definitions is to handle data preparation and define the Semantic Model, upon which the Data Model will be queried.

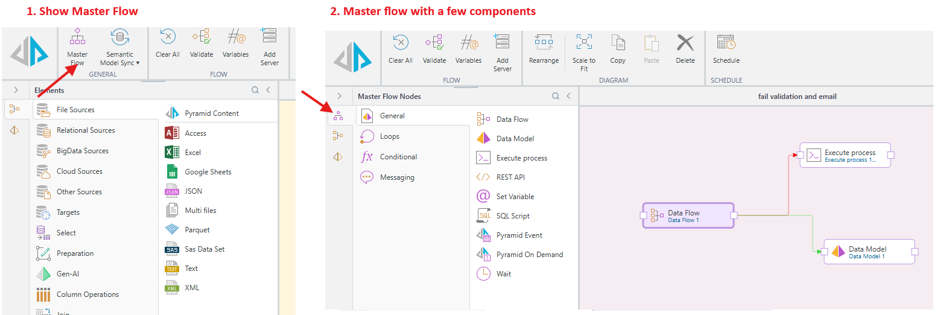

By default, Model Definitions opens with a Data Flow, where data preparation can be managed, but you can elect to show the Master Flow page and have the ability to add tasks and sequences as needed:



Think of this as the framework and instructions for how data should be processed and modelled.

(It is important to note that you could use Model Definitions just to execute tasks without processing Data Models at all.)

2. Data Model

This is the Logical/Semantic Layer.

It is part of the Model Definitions; you can see it once you click the Data Model icon:

Data Model defines the following:

• Relationships (Joins)
• Measures (aggregations - usually the numeric values)
• Dimensions (columns, the elements we measure)
• Business logic (descriptions, translations, terminology)

Data Models themselves are just the blueprint for a Data Model, you cannot use them to generate discovers and queries. This can only happen once we Materialize the Model.

3. Materialized Data Models

This is the executed (processed), query-ready version of a model. This what can be managed within Pyramid.

Materialized Data Models can be found in the Admin Console Settings, under Data Source Management:

A Materialized Model is created or refreshed when we execute a Model Definitions that has a Data Model defined within it.

When we create a Discover or a Formulate in Pyramid – we are always referencing a single Materialized Model (which is shown on the top with the full path – server\database\model).

In the admin console you can manage permissions, row level security and overlays for the model.

In short:

Model Definitions → data preparation and orchestration.
Data Models → logic and semantics
Materialized Models → persist, make accessible, manage permissions

Special thanks to Hillel Dor for helping me with this post :-)
